    25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator

    Ask Lasest Price
    Brand Name : GPRO
    Model Number : GP-FW33S
    Certification : ISO9001/ CE
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets / Month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

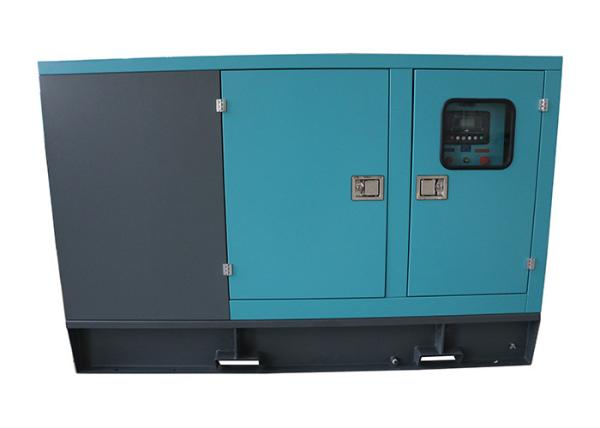

    25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator


    25KW 30KVA FAWDE Generator , Brushless Self Exciting Generator​


    Product describition


    1. SPECIFICATIONS OF GEN-SET
    1.1Set ModelGP-FW33S
    1.2Prime at 50HZ, 40℃ ambient25KW 30KVA
    1.3Standby at 50HZ, 40℃ ambient28KW 33KVA
    1.4Rated Gen-set output400/230V 50Hz/60HZ
    1.5Rated Relative humidity≤ 60 %
    1.6Dimension (L×W×H)Open: 1800x760x1150
    Silent: 2320x1060x1150
    1.7WeightOpen: 800kg, Silent: 1100kg
    1.8Fuel consumption 100% prime load7
    1.9Structure of Gen-setThe Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
    2Control system (Optional)Basic control panel or Advanced control panel with automatically start-up function and other function.
    2. SPECIFICATIONS OF ENGINE
    2.1Engine BrandFAWDE/Xichai
    2.2Engine Model4DW92-39D
    2.3Governor/ClassMechanical or Electronic
    2.4Cylinder NO.4
    2.5Engine buildLine
    2.6Emission compliantStage II
    2.7start-up method24V, electric
    2.8Air intake typeNatural
    2.9Cooling modeWater Cooling
    2.10Bore and stroke102×118 mm
    2.11Compression ratio17:01
    2.12Displacement3.86
    2.15Lubrication oil capacity12.5L
    2.16Oil consumption0.06
    2.2127℃ air consumption ( m³/ min)2.6
    2.22Fuel type#0 Diesel (Natural temperature)
    2.23Filter systemAdopt whole changeable lubricating oil, fuel filter and air filter
    2.24Exhaust systemAdopt industrial high efficiency muffler and ripple pipe
    3. SPECIFICATIONS OF ALTERNATOR
    3.1Alternator ModelG184F
    3.2Alternator TypeA.C. Synchronous
    3.3Rated Voltage230/400V
    3.4Rated Frequency50HZ
    3.5Rated speed1500 RPM
    3.6Voltage regulation modeAuto
    3.7Alternator voltage regulation±0.5%
    3.8Exciting modeBrushless self exciting
    3.9Power factor0.8 (lagging)
    3.10Phase & wires3 phase 12 wires
    3.11Rated currency45.1A
    3.12Efficiency0.862
    3.13Insulation classH
    3.14Protection classIP23
    3.15Single load step to NFPA110100%
    3.16StandardsIEC34-1,NEMA1
    3.17Max. Ambient Temperature40℃
    3.18Min. Ambient Temperature- 20℃
    3.19Max. altitude1000m
    3.20Weight156KG

    Why choose us:


    Description:

    Wuxi Gpro Power Solution Co., Ltd ltp focuses on China's generator products and services.In the field of power generation for more than 10 years, all of our generators are designed and manufactured to provide full power performance and rated generators for actual capacity. The company and many well-known enterprises at home and abroad to maintain a long-term strategic friendship and cooperation.

    1. Our warranty is 1 year or 1000 hours, whichever comes first.
    2. Global warranty is available based on the engine and alternator of your choice.
    3. The payment method is T/T 30% advance and 70% of the balance should be paid prior to shipment.
    4. Our standard delivery time is 20 to 30 days.


    We supply Generator Sets from 2kva to 3000kva.


    If You Are Interesting In GPRO, Pls Contace Us Freely ,Welcome To Visit GPRO!!
