4 Cylinder Three Phase Diesel Generator FAWDE 16KW 20KVA Electric
Start
Product describition
| Genset | Genset Model | GP22FWS |
| Prime at 50HZ, 40℃ ambient | 16KW 20KVA |
| Standby at 50HZ, 40℃ ambient | 16KW 20KVA |
| Rated Gen-set output | 230/400V 50Hz |
| Dimension (L×W×H)mm | Open: 1450*650*1050,
Silent: 2000*940*1100 |
| Weight | Open: 480kg, Silent: 800kg |
| Fuel consumption 100% prime load | 4.4l/h |
| Rated currency | 28A |
| Circuit Breaker | Delixi/CHINT or Customized |
| Base fuel tank | At least for 8-hour contunuous running |
| Controller | Deepsea/ ComAp/ Smartgen |
| Noise Level/dBA @7m(Silent type only) | 65 |
|
| Engine | Engine Brand | FAWDE |
| Engine Model | 4DW91-29D |
| Governor/Class | Mechanical or Electronic |
| Cylinder NO. & Build | 4 |
| Cooling mode | Water Cooling |
| Bore and stroke | 90×100 mm |
| Compression ratio | 17:01 |
| Displacement | 2.54 |
| Engine Prime Power at 1500rpm | 21KWm |
| Engine Standby Power at 1500rpm | 23KWm |
|
| Alternator | Alternator Brand | Stamford type, brushless, 100% copper |
| Insulation class | H |
| Protection class | IP23 |

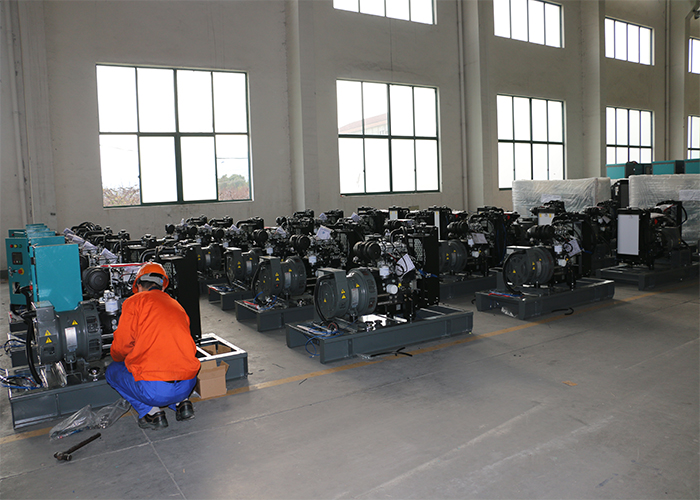

Factory Environment
Description:
Diesel engine is an internal -combustion engine, in which air is
compressed to a sufficiently high temperature to ignite diesel fuel
injected into the combustion chamber. It can be used to power
diesel generator , water pump, tiller etc. Since the future
emission standard demands, we are always improving the fuel and
engine structures to reduce the impact on environment. "Green
Engine" is our target. We always pay more attention to climate
protection and environmental.
Package & Payment & Delivery Date & WarrantyPackage:Plastic
Package.
Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days
before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty
terms for a period of12 months from date of despatch or 1000
running hours from date of commissioning whicheverdate occurs the
sooner.
Transation Process:
1. Buyer place order after confirming the details.
2. Seller issue the Proforma Invoice.
3. Buyer pay the advance payment base on the bank details on PI.
4. Seller arrange production immediately after receiving the
advance payment.
5. Seller send photos of the products and videos of testing to
Buyer.
6. Buyer pay the balance payment after checking the photos and
videos.
5. Seller arrange the shipment base on Fob/CNF/CIF/DDU, and send
photos of packing and shipping.
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever
comes first(Excep the damageable spare parts of genset caused by
incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the
engines and alternators you choose. Please contact us for more
details
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent
demand, the delivery will be shorter depending on the requirements.
If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
6: Yes. For mass orders, we can use customer's logo instead of
ours.
