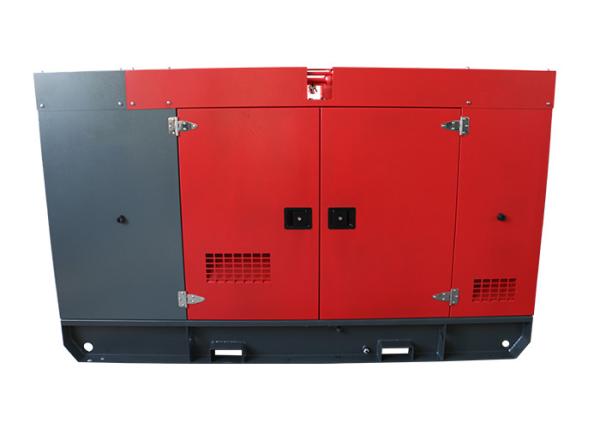

50kva 40kw Diesel Silent Generator Set , Silent Canopy Genset Water Cooling

Ask Lasest Price
Brand Name :	GPRO
Model Number :	GP55FWS
Certification :	ISO9001/ISO14001/CE/PVOC
Price :	3713-5432
Payment Terms :	L/C, T/T
Supply Ability :	50 sets / Month
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

50kva 40kw Diesel Silent Generator Set , Silent Canopy Genset Water Cooling

50kva 40kw Diesel Silent Generator Set , Silent Canopy Genset Water Cooling

Product Description

1. SPECIFICATIONS OF GEN-SET
1.1	Set Model	GP55FWS
1.2	Prime at 50HZ, 40℃ ambient	40KW 50KVA
1.3	Standby at 50HZ, 40℃ ambient	44KW 55KVA
1.4	Rated Gen-set output	230/400V 50Hz
1.5	Rated Relative humidity	≤ 60 %
1.6	Dimension (L×W×H)	Open: 18007601150, Silent: 24009501200
1.7	Weight	Open: 940kg, Silent: 1400kg
1.8	Fuel consumption 100% prime load	14
1.9	Structure of Gen-set	The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2	Control system (Optional)	Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1	Engine Brand	FAWDE
2.2	Engine Model	4DX22-65D
2.3	Governor/Class	Electronic
2.4	Cylinder NO.	4
2.5	Engine build	Line
2.6	Emission compliant	Stage II
2.7	start-up method	24V, electric
2.8	Air intake type	Turbocharged
2.9	Cooling mode	Water Cooling
2.10	Bore and stroke	110×125 mm
2.11	Compression ratio	17:01
2.12	Displacement	4.75
2.13	Engine Prime Power at 1500rpm	65KWm
2.14	Engine Standby Power at 1500rpm	72KWm
2.15	Lubrication oil capacity	16L
2.16	Oil consumption	0.06
2.17	Dry weight of base	470Kg
2.18	Dry weight of Gen Pac	540Kg
2.19	Overall dimension(G.P)	1300×700×938(mm)
2.2	Overall dimension(base)	970×630×930(mm)
2.21	27℃ air consumption ( m³/ min)	5
2.22	Fuel type	#0 Diesel (Natural temperature)
2.23	Filter system	Adopt whole changeable lubricating oil, fuel filter and air filter
2.24	Exhaust system	Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1	Alternator Model	Stamford/UCI224D
3.2	Alternator Type	A.C. Synchronous
3.3	Rated Voltage	230/400V
3.4	Rated Frequency	50HZ
3.5	Rated speed	1500 RPM
3.6	Voltage regulation mode	Auto
3.7	Alternator voltage regulation	±0.5%
3.8	Exciting mode	Brushless self exciting
3.9	Power factor	0.8 (lagging)
3.10	Phase & wires	3 phase 12 wires
3.11	Rated currency	86.6A
3.12	Efficiency	88.80%
3.13	Insulation class	H
3.14	Protection class	IP23
3.15	Single load step to NFPA110	100%
3.16	Standards	IEC34-1,NEMA1
3.17	Max. Ambient Temperature	40℃
3.18	Min. Ambient Temperature	- 20℃
3.19	Max. altitude	1000m
3.20	Weight	270kg

50kva 40kw Diesel Silent Generator Set , Silent Canopy Genset Water Cooling
