    Air Cooled Diesel Deutz Generator With Stamford Alternator 50 / 60HZ

    Ask Lasest Price
    Brand Name : Power Friend
    Model Number : PF-D55
    Certification : ISO,CE Certification
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 300 Set / Month
    Delivery Time : 15 - 20 working day
    • Product Details
    • Company Profile

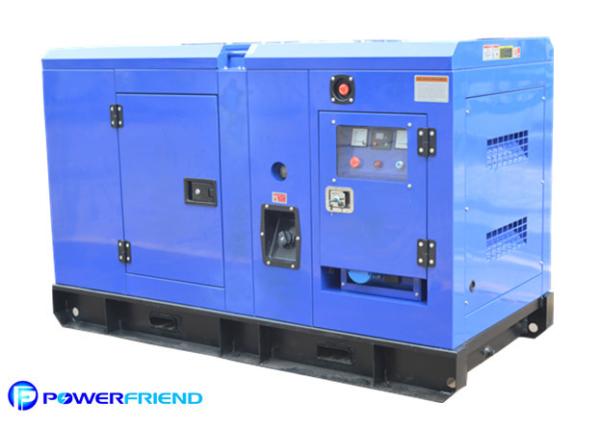

    Air Cooled Diesel Deutz Generator With Stamford Alternator 50 / 60HZ

    Open type Air Cooled Diesel Deutz Generator with Stamford Alternator 50/60HZ

    Genset ModelPF-D55
    Prime Power(50HZ)40KW / 50KVA
    Standby Power(50HZ)44KW /55KVA
    Frequency/Speed50Hz/1500rpm
    Standard Voltage230V/400V
    Voltage Available220V/380V
    PhasesThree phases, four wires
    ManufacturerPower Friend

    Engine

    ManufacturerDeutz Engines Company Limited
    ModelF6L912
    Engine speed1500rpm
    Engine power
    Standby power48kw
    Prime power45kw
    Number of cylinder3 cylinder in-line
    TypeVertical 4-stroke air-cooled deirect injection
    AspirationNaturally aspirated
    Bore * Stroke102*125mm
    Displacement4.086 L
    Compression ratio18
    Direction of rotationclockwise
    Combustion Air Flow4.2m3/min
    Exhaust Gas Flow4.33 m3/min
    Exhaust Gas Temperature550oC
    Area of heat radiation0.16m2
    Noise dB105a
    Electric System12V/24V

    Alternator

    BrandStamford.
    ModelUCI224D
    Output power40 KW
    AVR modelR220 / R438
    Number of phase3
    Power factor (Cos Phi)0.8
    Altitude≤ 1000 m
    Overspeed2250RPM
    Number of Pole4
    Exciter typeShunt / AREP
    Insulation classH
    Voltage regulation±1%
    Sustained short circuit current300% (3 IN) : 10s
    Total harmonics (TGH/THC)no load < 3% - on load < 2%
    Wave form : NEMA = TIF< 50
    Bearingsingle

    Deutz air-cooled power generation is to choose Beijing internal combustion engine co., LTD., the production of air-cooled engine matched brushless generator. Its characteristic is: low noise, low fuel consumption, small size, suitable for high elevations.


    Air Cooled Diesel Deutz Generator With Stamford Alternator 50 / 60HZ Air Cooled Diesel Deutz Generator With Stamford Alternator 50 / 60HZ


    Standard Supply Scope:
    Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
    Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
    Documents included: manual book, product qualified card

    Optional supply scope:
    1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

    Advantages:
    . A strong R&D team with rigorous selection and trainning
    . Several years experiences in desinging and manufacturing diesel generator sets.
    . Good reputation for reliable quality and reasonable price
    . Advanced production line with skilled workers

    Sales Promises:
    . Our company provides a full line of brand new and high quality products which are strictly tested before shipment
    . Quality warranty is according to our standard conditions: One year or 1000 running hours

    If have any questions, please contact us. Your inquiry would be appreciated.
