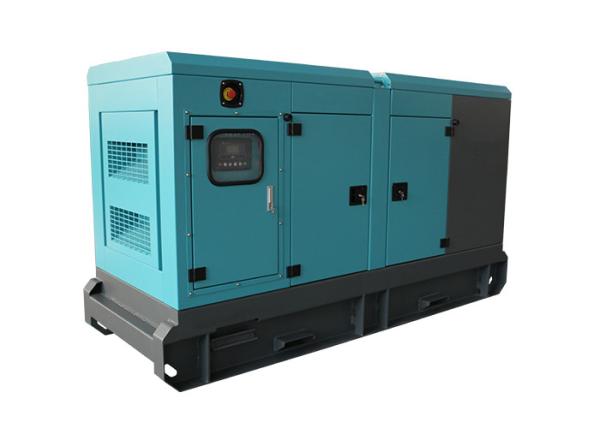

    AC 3 Phase Cummins Dg Set 4 Cylinders Soundproof Diesel Generator 60kva / 48kw

    Ask Lasest Price
    Brand Name : GPRO
    Model Number : GP66DCS
    Certification : ISO,CE Certification
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 300 Set / Month
    Delivery Time : 15 - 20 working day
    • Product Details
    • Company Profile

    AC 3 Phase Cummins Dg Set 4 Cylinders Soundproof Diesel Generator 60kva / 48kw

    AC 3 Phase Cummins Dg Set 4 Cylinders Soundproof Diesel Generator 60kva / 48kw


    1. Specification of Genset
    Gensets ModelGP66DCS
    Prime Power48kw/60va
    Rated Voltage380/220V
    Rated Frequency (HZ)50/60hz
    Rated Speed1500rpm/1800rpm
    Power Factor0.8(lagging)
    Dimensions (mm) (L×W×H)2650x1020x1480
    Genset Weight (kg)1400
    2. Specification of Diesel Engine
    Engine BrandCummins
    Engine Model4BTA3.9-G2
    Number of Cylinders4
    Cylinder ArrangementVertical in-line
    CycleFour stroke
    AspirationTurbocharged, Water cooling
    Fuel SystemPT type fuel pump, EFC
    Bore×Stroke (mm×mm)159 x 159
    Displacement (Liter)50.3
    Compression Ratio13.9:1
    Speed GovernorElectronic
    Cooling SystemForced Water Cooling Cycle
    Total lubrication System Capacity (L)95
    Fuel Consumption at 100% Load (L/H)57
    Starting MethodDC24V electrical starting
    3. Specification of Alternator
    Alternator BrandStamford / Meccalte
    Alternator Model224E
    Number of Phase3
    Connecting Type3 Phase and 4 Wires
    Number of Bearing1
    Protection GradeIP21
    Altitude≤1000m
    Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
    Insulation ClassH
    Telephone Influence Factor (TIF)≤50
    THF≤2%
    Voltage Regulation, Steady State≤±1%
    Transient State Voltage≤-15%~+20%
    4. Specification of Control Panel (with Deepsea Controller)
    The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
    The features of Deepsea controller:
    Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.

    AC 3 Phase Cummins Dg Set 4 Cylinders Soundproof Diesel Generator 60kva / 48kw

    There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.


    ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

    Standard Supply Scope:


    Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
    Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
    Documents included: manual book, product qualified card


    Optional supply scope:


    1.ATS

    2. SynchronizationSystem

    3. External daily fuel tank

    4. Silent Canopy

    5. Trailer

    6. Auto Fuel Pump

    7. Fuel and Water Separator

    8. Lub Oil Heater

    9. Coolant Heater

    10. Fuel Drain Pump


    Advantages:


    . We are a powerful and unity sales team:

    . we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

    90% of our sales team members are with more than 5 years of experience in the generator field.

    . We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

    . We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

    . With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


    If have any questions, please contact us. Your inquiry would be appreciated.
