AC Single Phase Soundproof Diesel Generator 5kva 5kw With ATS , Easy Maintenance

Ask Lasest Price
Brand Name :	GPRO
Model Number :	PF
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	300 sets
Delivery Time :	30days
Certification :	ISO, CE, SASO

Add to Cart

Product Details
Company Profile

AC Single Phase Soundproof Diesel Generator 5kva 5kw With ATS , Easy Maintenance

AC Single Phase Soundproof Diesel Generator 5kva 5kw With ATS , Easy Maintenance

5KVA Diesel generator specification
Genset	Model No.	PD6500T (Silent type)
	Rated frequency (Hz)	50 60
	Rated voltage (v)	115/230 120/240
	Rated output power(kW)	5.0 5.5
	Rated rotation speed(rpm)	3000/3600
	DC Output	12v 8.3A
	Power factor	1
	Phase number	Single phase
	Noise level dB@7m	72
	Overall dimension (LWH)MM	950x530x740
	Net weight(Kg)	170

Engine	Engine type	IF188FAGE
	Structure type	Single cylinder , in lined 4 stroke, air cooled direct injection
	Bore * stroke mm	86X72
	Displacement ml	418
	Compression ratio	19:01
	Rated output(kw/rpm)	5.9/3000 6.5/3600
	Lubrication system	pressure splashed
	Lue oil brand	Above CD SAE 10W 30 15W 40
	Staring system	12V Electric starter
	Starting motor capacity	12V 0.8KW
	Charging generator capacity	12V 3A
	Battery capacity	12V 36AH
	Fuel consumption rate(g/kw.h)	3000rpm 276,3600rpm 285
	Fuel type	Diesel 0# or 10# 35#
	Fuel tank capacity (L)	12.5
	Continuous Running time(H)	8

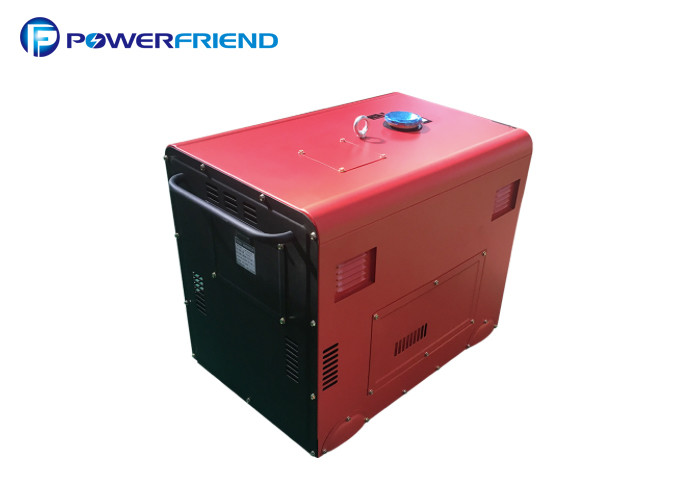

Product Pictures

AC Single Phase Soundproof Diesel Generator 5kva 5kw With ATS , Easy Maintenance

Packing details

Exhibition Show

FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.

Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.

Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
