    Diesel Small Portable Generators Electric Genset 5kw Single Phase Or Three Phase

    Ask Lasest Price
    Brand Name : GPRO
    Model Number : PD6500E
    Certification : ISO,CE Certification
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 600 Set / Month
    Delivery Time : 15 - 20 working day
    • Product Details
    • Company Profile

    Diesel Small Portable Generators Electric Genset 5kw Single Phase Or Three Phase

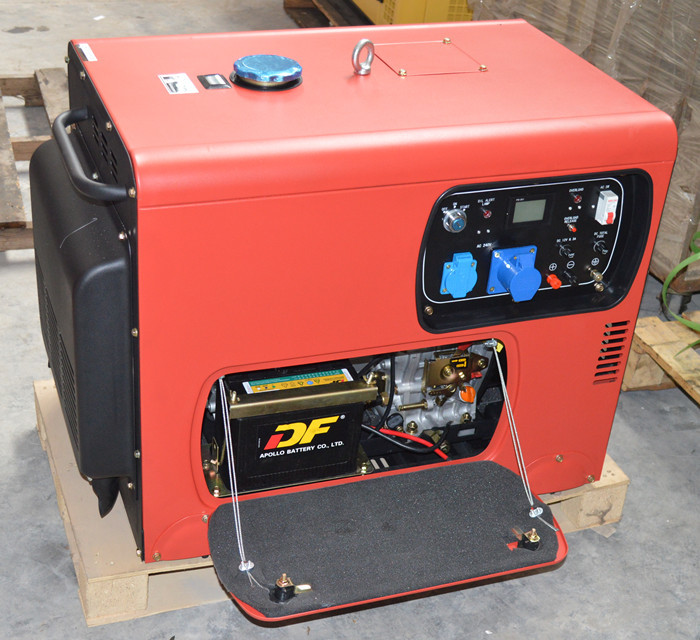

    Portable diesel generator small electric genset 5kw single phase or three phase

    GensetModel No.PD6500E (Open type)PD6500ES (Silent type)
    Rated frequency (Hz)50/6050/60
    Rated voltage (v)230 120/240230 120/240
    Rated output power(kW)5.0 6.05.0 6.0
    Rated rotation speed(rpm)3000/36003000/3600
    DC Output12v 8.3A12v 8.3A
    Power factor11
    Phase numberSingle phaseSingle phase
    Noise level dB@7m8575
    Overall dimension (L*W*H)MM780x500x650950x560x750
    Net weight107165
    EngineEngine type186FAE188FAE
    Structure type

    Single cylinder ,

    in lined 4 stroke,

    air cooled direct injection

    Single cylinder ,

    in lined

    4 stroke, air cooled

    direct injection

    Bore * stroke mm86X7286X72
    Displacement ml418418
    Compression ratio19:0119:01
    Rated output(kw/rpm)5.9/3000 6.5/36005.9/3000 6.5/3600
    Lubrication systempressure splashedpressure splashed
    Lue oil brand

    Above CD SAE 10W

    30 15W 40

    Above CD SAE 10W

    30 15W 40

    Staring systemRecoil starter12V Electric starter
    Starting motor capacity12V 0.8KW12V 0.8KW
    Charging generator capacity12V 3A12V 3A
    Battery capacity12V 36AH12V 36AH
    Fuel consumption rate(g/kw.h)3000rpm 276,3600rpm 2853000rpm 276,3600rpm 285
    Fuel typeDiesel 0# or 10# 35#Diesel 0# or 10# 35#
    Fuel tank capacity (L)1515
    Continuous Running time(H)88

    Diesel Small Portable Generators Electric Genset 5kw Single Phase Or Three Phase

    Loading quanity for 20ft container is 72 units.

    Testing Items of Power Friend Genset:
    1) Parts fault testing
    2) Fue tank pressure testing
    3) Bolt tightening torque testing
    4) Painting thickness testing
    5) Voltage bearing and insultion testing
    6) Noise testing
    7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.

    Guarantee:
    1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
    2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
    3) Spare-parts can also be sent by air express.
    4) 24 hours service hotline is available for customers.


    If have any questions, please contact us. Your inquiry would be appreciated.
