Portable Small Welder Generator 190A Electric Start With Wheels And Handle

Product Categories

Wuxi Gpro Power Solution Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Portable Small Welder Generator 190A Electric Start With Wheels And Handle
Brand: GPRO
Price: 1 USD

Add to Cart

Diesel 1 cylinder engine for portable 190A welder generators moveable

Portable Small Welder Generator 190A Electric Start With Wheels And Handle

190A Welder generator Specifications:

Genset	Model No.	6500EW (Open type)	6500TW (Silent type)
	Rated frequency (Hz)	50/60	50/60
	Rated voltage (v)	230 240	230 240
	Rated current(A)	7.4 7.8	7.4 7.8
	Rated Output power(kW)	1.7 1.8	1.7 1.8
	Rated rotation speed(rpm)	3000/3600	3000/3600
	Power factor	1	1
	Phase number	Single phase	Single phase
	Noise level dB@7m	75-77	85
	Overall dimension (LWH)MM	780x500x640	950x560x750
	Net weight	110	170

Engine	Engine type	186FAE	186FAE
	Structure type	Single cylinder , in lined 4 stroke, air cooled direct injection	Single cylinder , in lined 4 stroke, air cooled direct injection
	Bore * stroke mm	86X72	86X72
	Displacement ml	418	418
	Compression ratio	19:01	19:01
	Rated output(kw/rpm)	5.9/3000 6.5/3600	5.9/3000 6.5/3600
	Lubrication system	pressure splashed	pressure splashed
	Lue oil brand	Above CD SAE 10W 30 15W 40	Above CD SAE 10W 30 15W 40
	Staring system	12V Electric starter	12V Electric starter
	Starting motor capacity	12V 0.8KW	12V 0.8KW
	Charging generator capacity	12V 3A	12V 3A
	Battery capacity	12V 36AH	12V 36AH
	Fuel consumption rate(g/kw.h)	3000rpm 275,3600rpm 281	3000rpm 275,3600rpm 281
	Fuel type	Diesel 0# or 10# 35#	Diesel 0# or 10# 35#
	Fuel tank capacity (L)	15	12.5
	Continuous Running time(H)	8	7

Description:

Welder generator current capacity 190A , Generator power 1.7KW/2KW

Dimension 780x500x640mm Net Weight 110KGS

Quantity for 20 foot container 112 sets

Quantity for 40 foot container 240 sets

Applications:

1. Industrial use

2. Outside working where need welder

Competitive Advantage:

1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. Short delivery time

4. Stable quality warranty

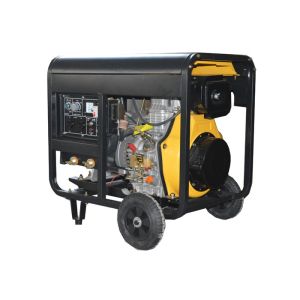

Portable 190A welder generators photos:
